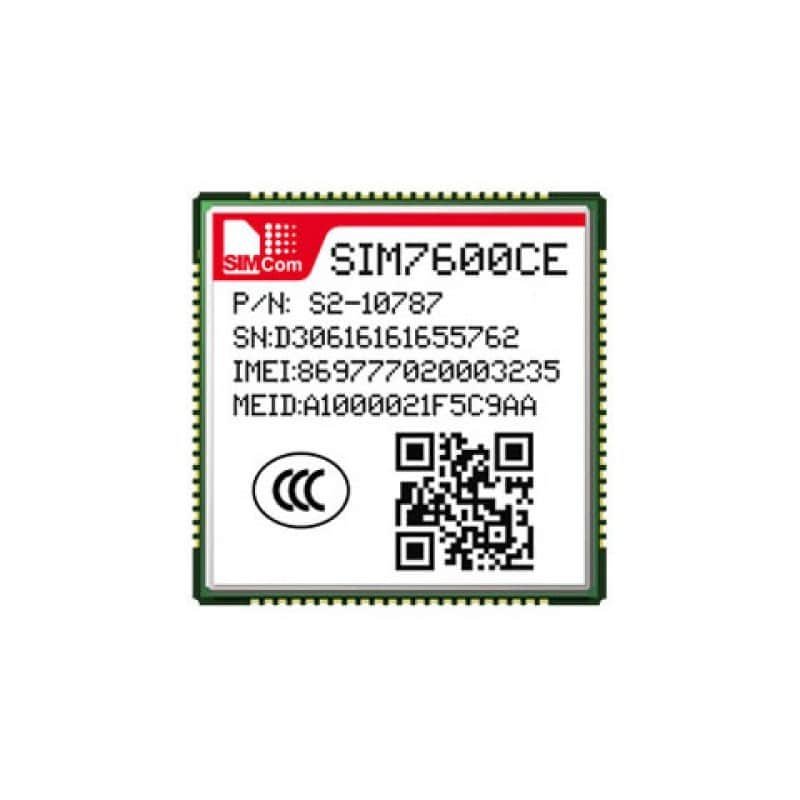

SIM7600CE GSM GPRS Module

SIM7600CE is Multi-Band LTE-TDD/LTE-FDD/HSPA /TD-SCDMA/EVDO and Dual-Band GSM/GPRS/EDGE module solution in a SMT type which supports LTE CAT4 up to 150Mbps for downlink data transfer. It has strong extension capability with rich interfaces including UART, USB2.0, SPI, I2C, GPIO etc. With abundant application capability like TCP/UDP/FTP/FTPS/HTTP/HTTPS/SMTP/POP3 and MMS, the module provides much flexibility and ease of integration for customer’s application.Features:- • Quad-Band TDD-LTE B38/B39/B40/B41• Tri-Band FDD-LTE B1/B3/B8• Dual-Band TD-SCDMA B34/B39• Dual-Band UMTS/HSDPA/HSPA B1/B8• CDMA 1X/EVDO BC0• GSM/GPRS/EDGE 900/1800 MHz• Control Via AT Commands• Supply voltage range 3.4V~ 4.2V• Operation temperature -40 to 85• Dimension 30*30*2.9 mm• Weight 5.5g• GNSS gpsOne Gen 8B;standalone;assisted,XTRAOther features:-• USB Driver for Microsoft Windows2000/XP/Vista/Win7/Win8/Win10• USB Driver for Windows CE• USB Driver for Linux /Android• RIL supporting for Android/Windows CE• Automatic installation for windows• Firmware update via USB• TCP/IP/IPV4/V6 Multi-PDP,MT PDP• FTP/FTPS/HTTP/HTTPS/DNS• DTMF• MBIM to Win8• Source code of the PC manager of the device for referenceInterfaces:-• USB2.0• UART• SIM card• I2C• Constant current sink• GPIO• ADC• PCM• SDIOSpecifications for Data transfer:-LTE CAT4– Uplink up to 50Mbps,– Downlink up to 150MbpsTD-SCDMA– Uplink up to 128Kbps,– Downlink up to 384KbpsTD-HSDPA/HSUPA– Uplink up to 2.2 Mbps,– Downlink up to 2.8 MbpsHSPA – Uplink up to 5.76 Mbps,– Downlink up to 42 MbpsUMTS– Uplink/Downlink up to 384KbpsEDGE Class– Uplink/Downlink up to 236.8KbpsGPRS– Uplink/Downlink up to 85.6Kbps* product image for illustration purposes only. actual product may vary.
