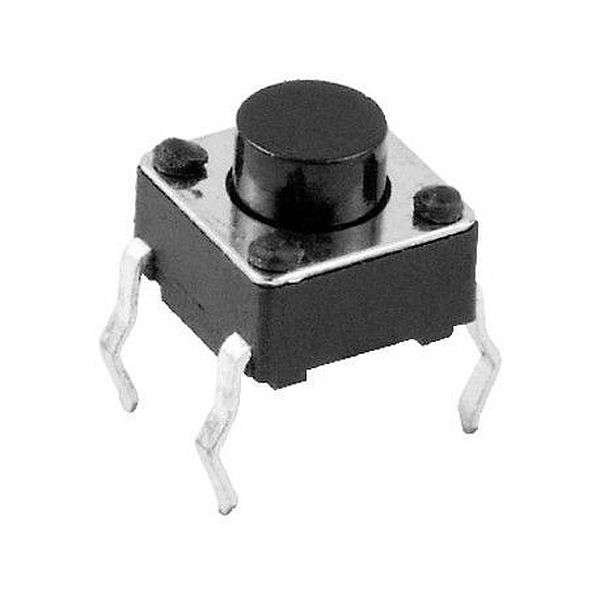

Tactile 4Pin Pushbutton

DescriptionTactile 4Pin PushbuttonBreadboard Tactile Pushbutton Switch Momentary 4pin 6*6*5mmAn electronic switch is an electronic component or device that can switch an electrical circuit, interrupting the current or diverting it from one conductor to another.Tactile Push Button Switch is widely used as a standard input “buttons” on electronic projects. These work best when you mount it on PCB but can also be used on a solderless breadboard for temporary connections in prototypes. The pins are normally open (disconnected) and when the button is pressed they are momentarily closed and complete the circuit.Features and Specifications:-Body Material : PlasticOperating Voltage : 12VOperating Current : 50mAPin Count : 4-pinSwitch Type : Push ButtonTactile/MicroswitchThrough-hole designShaft Shape : RoundTactile 4Pin PushbuttonVoltage 250 VAC Current up to 50 mA Dimensions 6 x 6 x 6 mm Contact resistance up to 0.03 Ohm Insulation resistance greater than 100 MOhm Temperature range -30 to 70 ° CIncluded 1pc microswitch 6x6x6 mm
