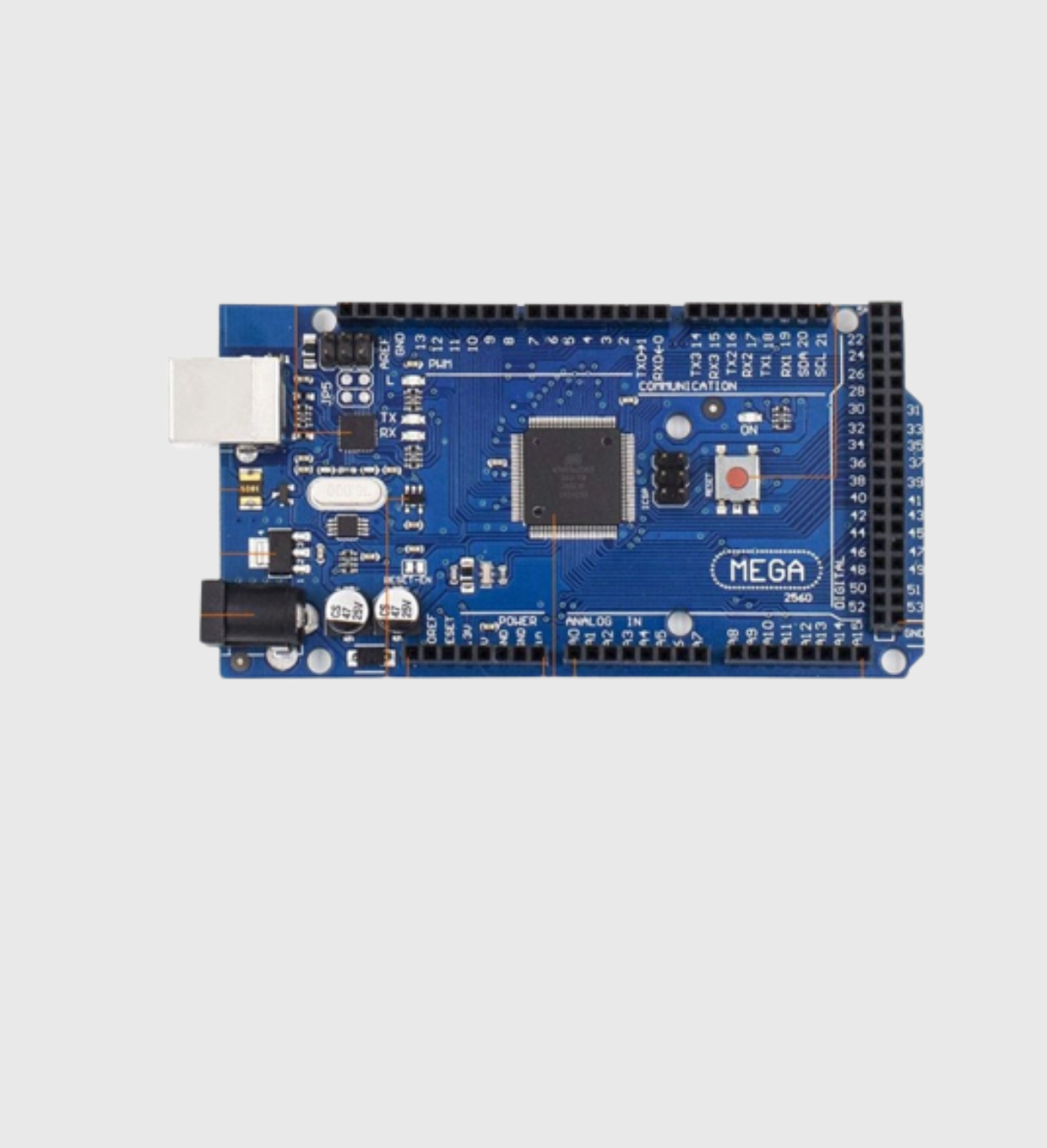

Arduino Mega2560 ATMEGA2560 CH340G Erovoutika Robotics Mega 2560 R3 Motherboard Compatibility

The Mega 2560 R3 Motherboard works with the Mega 2560 Arduino. It has 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, 54 digital input/output pins (of which 15 can be used as PWM outputs), a USB connection, a power jack, an ICSP header, and a reset button. It comes with everything needed to support the microcontroller; to get started, just plug in a USB cable, an AC-to-DC adapter, or a battery. The majority of shields made for the Uno and earlier boards are compatible with the Mega 2560 board. Duemilanove or Diecimila. – Microcontroller: ATmega2560 – Operating Voltage: 5V – Recommended Input Voltage: 7-12V (Clone boards support up to 9V) – Input Voltage Limit: 6-20V – Number of Digital I/O Pins: 54, with 15 offering PWM output – Analog Input Pins: 16 – DC Current Handling per I/O Pin: 20 mA – DC Current for 3.3V Pin: 50 mA – Flash Memory: 256 KB, with 8 KB used by the bootloader – SRAM: 8 KB – EEPROM: 4 KB – Clock Speed: 16 MHz – Dimensions: 101.52 mm in length, 53.3 mm in width – Weight: 37 grams **Features:** – This kit is a MEGA-2560 R31 Prototype Screw Terminal Block Shield Board for Arduino. – It includes a prototype PCB, terminal blocks, and female header sockets. – The terminal module is constructed from high-quality materials and has undergone precise workmanship for durability. – It consists of a screw terminal block, a PCB carrier, and an FR-4 glass fiber PCB. – Overall, it’s a durable and practical solution. **Specifications:** – Color: As depicted in the pictures. – Terminal Block: – Pitch: 3.5mm for mini terminal blocks, with a total of 84 pins (24 pieces of 3-pole and 6 pieces of 2-pole). – Wire range: 26-16AWG, with a 5mm strip length. It features screws made of M2 steel, with brass pin headers and cages. – PCB: – Pads grid/pitch: 2.54mm, and the hole diameter is approximately 0.8mm. – Terminal block pitch: 3.5mm, and the hole diameter is approximately 1.2mm. – Dimensions: Approximately 12.024 x 7.72cm. – Female Header Socket: – Pitch: 2.54mm, with a pin length of approximately 15mm. – Includes one single-row 10-pin socket, five single-row 8-pin sockets, and one dual-row 18-pin socket.
