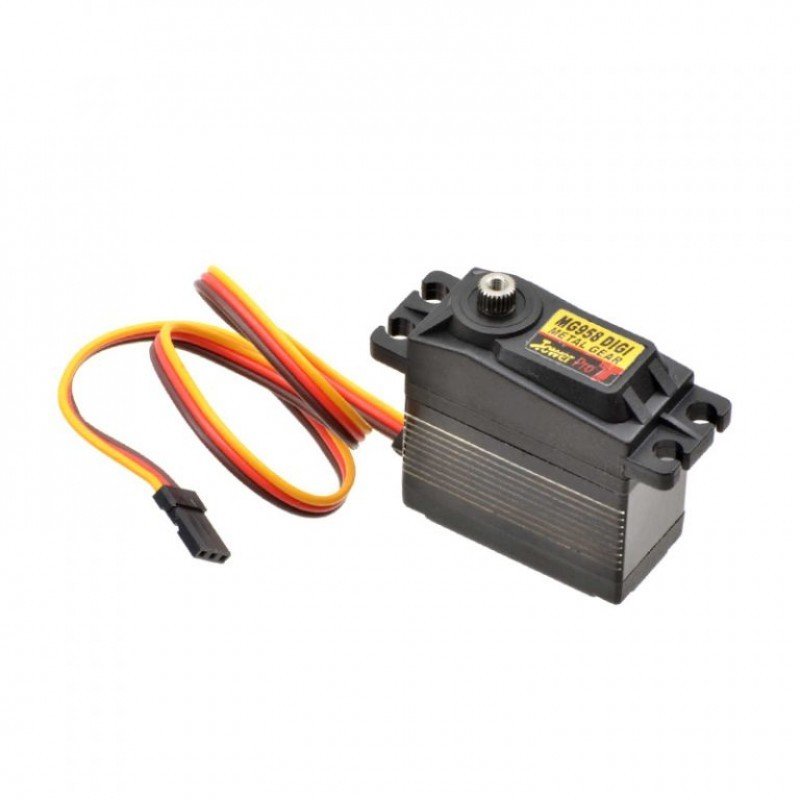

Tower Pro MG958 Digital High Torque Metal Gear Servo Motor
$ 99.69
The MG958 High Torque Digital Metal Gear Servo is the best choice if you need higher torque than 15KG. It provides an excellent performance for RC-cars from 10 to 6 scale truggy monster and 30cc 60cc airplanes. Its shaft is upgraded to aluminum 6061-T6. It is stronger and lighter than copper. The product configure table is provided in the attachments. Please refer to it to get more information regd. the dimensions of the product.Wire Description:-RED –Positive, Brown –Negative, Orange –SignalFeatures:Servo arms & screws included and fit with Futaba servo armCE & RoHS approvedServo case: Alloy case in the middleGear Type: Metal gearBearing: Double ball bearingServo wire length: 32cmServo Plug: JR (Fits JR and Futaba)Additional information:-Operating Voltage (VDC) 4.8 ~ 6 Operating Temperature (C) 0 to 55 Stall Torque @ 4.8V (Kg-Cm) 18 Stall Torque @6.6V (Kg-Cm) 20 Operating Speed @4.8V 0.18sec/60 Operating Speed @6.6V 0.15sec/60 Current draw (at idle) 10mA Current draw (at no load) 170mA Stall current draw 1600mA Servo wire length 32 cm Servo Plug JR (Fits JR and Futaba) Bearing Double ball bearing Gear Type Metal gear Servo case Alloy case in the middle Length (mm) 54.2 Width (mm) 20 Height (mm) 47.8 Weight (gm) 68* product image for illustration purposes only. actual product may vary.
