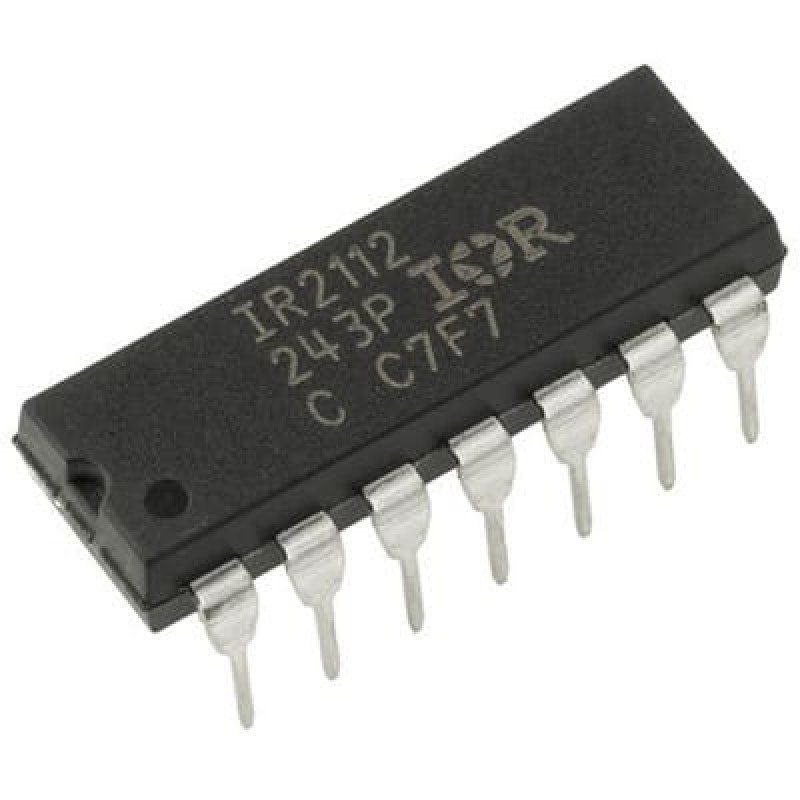

IR2112 High and Low Side Driver IC DIP 14 Package

IR2112 High and Low Side Driver IC DIP 14 Package The IR2112 is a high-voltage high-side and low-side gate driver IC designed to drive N-channel MOSFETs or IGBTs in half-bridge and full-bridge power converter applications. It provides independent high-side and low-side driver channels with strong gate drive capability, enabling fast and efficient switching in high-power systems.The IC uses advanced level-shift technology with a bootstrap high-side supply, allowing the high-side driver to operate at voltages well above the system ground. It also includes undervoltage lockout (UVLO) protection to ensure safe operation during power-up and fault conditions. Packaged in a DIP-14 through-hole package, the IR2112 is suitable for prototyping, educational use, and industrial power electronics designs.Click here to view related productsFeaturesHigh-side and low-side gate driver in one ICDrives N-channel MOSFETs and IGBTsHigh-voltage floating high-side driverBootstrap operation for high-side supplyIndependent driver inputs and outputsBuilt-in undervoltage lockout (UVLO) protectionHigh peak output current capabilityFast switching with low propagation delayHigh noise immunityDIP-14 package for easy PCB mounting and prototypingApplicationsHalf-bridge and full-bridge invertersMotor drives and motor control systemsSwitch-mode power supplies (SMPS)DC-AC inverters and UPS systemsInduction heating equipmentIndustrial power convertersHigh-voltage power electronicsir2112-ic-datasheet*Product image for illustration purposes only, actual product may vary.
