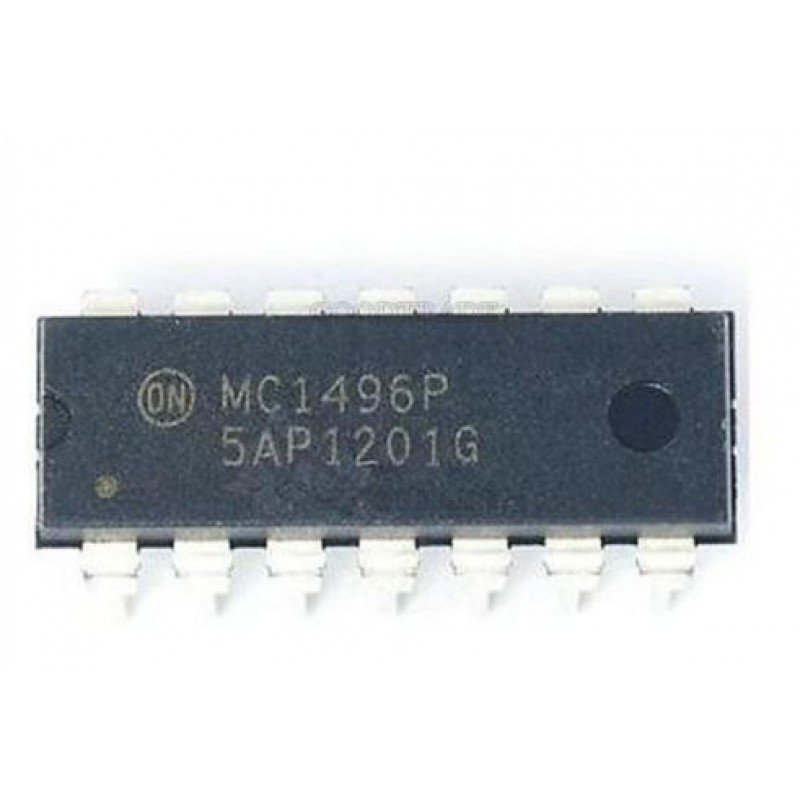

MC1496 Balanced Modulator/Demodulator IC DIP 14 Package

MC1496 Balanced Modulator/Demodulator IC DIP 14 Package The MC1496 is a versatile balanced modulator/demodulator IC widely used in analog signal processing and communication systems. It is designed to perform amplitude modulation (AM), double-sideband suppressed carrier (DSB-SC) modulation, product detection, and demodulation with good carrier suppression and linearity.The IC is built around a balanced Gilbert-cell type architecture, providing stable and predictable modulation characteristics over a wide frequency range. Housed in a DIP-14 through-hole package, the MC1496 is well suited for prototyping, educational labs, radio frequency (RF) experiments, and industrial analog designs.Click here to view related productsFeaturesBalanced modulator and demodulator functionSupports AM and DSB-SC modulationProduct detector capabilityGood carrier suppressionWide frequency operating rangeDifferential signal inputsAdjustable gain and carrier balanceStable performance over temperatureLow distortion operationDIP-14 package for easy PCB mounting and prototypingApplicationsAM transmitters and receiversRF and IF signal modulation/demodulationProduct detectors in communication systemsSingle-sideband (SSB) generation (with external filtering)Analog signal processingRadio frequency experimentation and educationTest and measurement equipmentmc1496-ic-datasheet* product image for illustration purposes only. actual product may vary.
