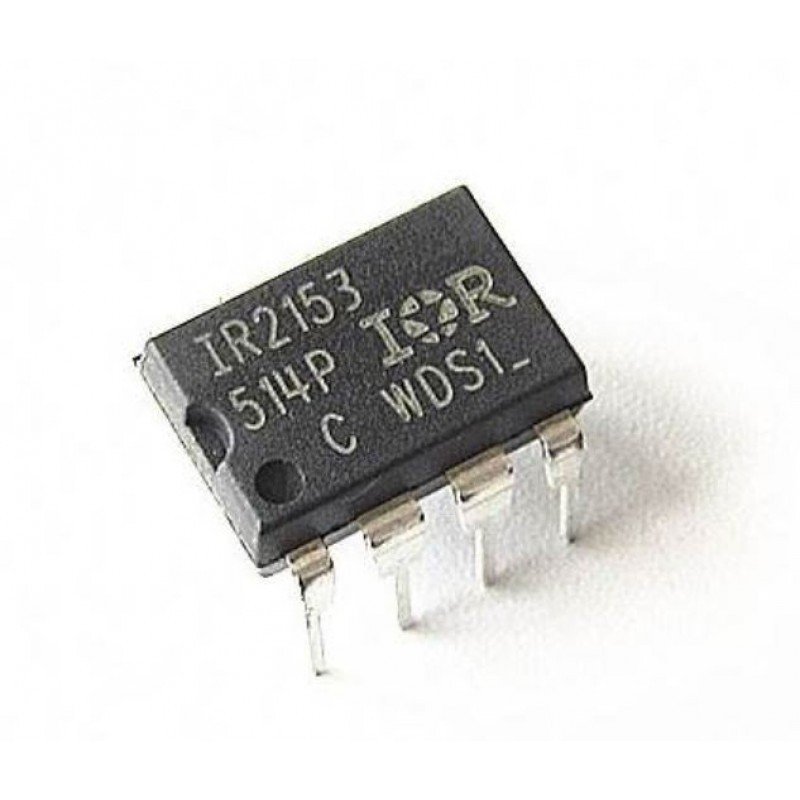

IR2153 Self Oscillating Half Bridge Driver IC DIP 8 Package

IR2153 Self Oscillating Half Bridge Driver IC DIP 8 Package The IR2153 is a self-oscillating half-bridge gate driver IC designed for driving high-side and low-side N-channel MOSFETs in half-bridge power converter applications. It combines a high-voltage gate driver, oscillator, dead-time control, and level-shift circuitry into a single compact device, enabling simple and cost-effective designs.The internal oscillator generates complementary gate drive signals with a fixed dead time, eliminating the need for an external PWM controller. The high-side driver uses a bootstrap technique, allowing operation in offline and high-voltage systems. Packaged in a DIP-8 through-hole package, the IR2153 is well suited for prototyping, educational use, and industrial power electronics.Click here to view related productsFeaturesSelf-oscillating half-bridge driverDrives high-side and low-side N-channel MOSFETsBuilt-in oscillator with adjustable frequencyFixed dead-time for safe switchingHigh-voltage level-shift technologyBootstrap high-side gate driveUndervoltage lockout (UVLO) protectionLow power consumptionMinimal external component requirementDIP-8 package for easy PCB mounting and prototypingApplicationsHalf-bridge SMPS and DC-DC convertersElectronic ballasts for fluorescent lampsResonant convertersInduction heating systemsInverters and UPS systemsMotor drive and power control circuitsIndustrial and consumer power suppliesir2153-ic-datasheet*Product image for illustration purposes only, actual product may vary.
