(Pack of 50) Schottky Diode 200mA SOT-23 Package BAT54, BAT54A, BAT54C, BAT54S

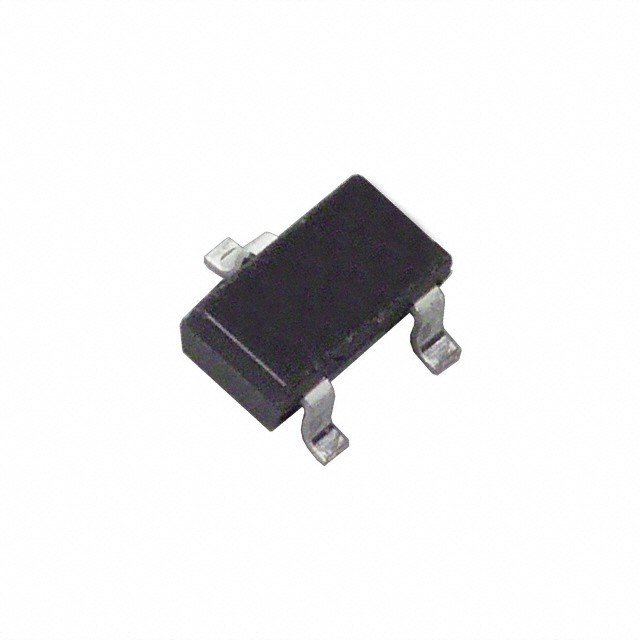

(Pack of 50) Schottky Diode 200mA SOT-23 Package BAT54, BAT54A, BAT54C, BAT54S This pack contains 50 Schottky diodes from the BAT54 series, available in different configurations: BAT54 (single diode), BAT54A (series pair), BAT54C (common cathode pair), and BAT54S (common anode pair).These diodes are designed for high-speed switching, low forward voltage drop, and low power signal rectification, making them ideal for compact, low-voltage electronic circuits.Housed in a tiny SOT-23 surface-mount package, the BAT54 series is commonly used in signal routing, clamping, reverse polarity protection, and power management in portable or low-power devices.Click here to view the related productsFeaturesForward Current: Up to 200mAVery Low Forward Voltage Drop: Typically 0.2–0.3V at low currentHigh Switching Speed: Suitable for high-frequency applicationsReverse Voltage (VR): Typically 30VPackage: SOT-23 (ideal for compact PCBs)Low leakage current for energy-efficient designsSchottky barrier technology for fast responseAvailable Variants:BAT54: Single diodeBAT54A: Two diodes in seriesBAT54C: Dual diodes, common cathodeBAT54S: Dual diodes, common anodeApplicationsLogic-level signal switchingReverse polarity protection in low-voltage circuitsClamping and protection for sensitive inputs (microcontrollers, sensors)Small signal rectificationRF and high-speed switching circuitsPower management in portable devicesDiode OR’ing (BAT54C/S variants)Level shifting and small DC conversionsBAT54 Datasheet*Product image for illustration purposes only, actual product may vary.
