(Pack of 5) RL207/FR207 1000V 2A Silicon Rectifier Diode DO 15 Package

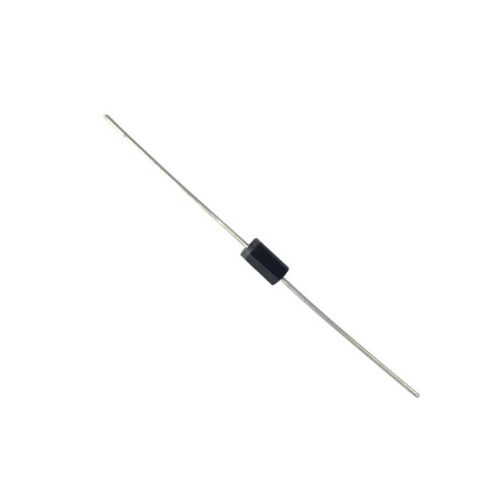

(Pack of 5) RL207/FR207 1000V 2A Silicon Rectifier Diode DO 15 Package The RL207 (also known as FR207) is a fast-recovery silicon rectifier diode rated for 2A forward current and 1000V reverse voltage. It is designed for general-purpose rectification, power supply circuits, and high-speed switching applications.Packaged in a DO-15 axial lead package, it provides robust performance, fast recovery, and high reliability, making it suitable for both industrial and consumer electronics.Click here to view the related productsFeaturesForward Current (IF): 2A continuousReverse Voltage (VRRM): 1000VForward Voltage Drop (VF): ~1.1V at rated currentReverse Recovery Time (trr): ~250nsPackage: DO-15 axialHigh surge current capability (~50A for 8.3ms pulse)Low leakage currentFast recovery for efficient switching applicationsCompact axial design for easy PCB mountingApplicationsAC to DC rectification in power suppliesSwitching mode power supplies (SMPS)High-voltage industrial circuitsBattery chargers and adaptersGeneral-purpose rectification in electronic equipmentPulse circuits and waveform shapingOvervoltage protection and clamping circuits*Product image for illustration purposes only, actual product may vary.
